Is it possible to getChildren from a table or build a path to the table sub-form?

HCL Leap Leap Forum
,
1

Example:
a table sub-form may contain 10 input fields however only 6 are currently included in the table.

The following will return the 6 currently assigned to the table, but can we access the other 4?

page.F_Table1.getColumnHeaders();

Is it possible to either getChildren from a table sub-form or build a path to the table sub-form?

Best regards
Stephen

2

This function returns the headers that you have configured in the UI for the summary/table view of the table data.

What is the use case? What are you trying to do and when?

If you have a handle to the table data object then you will get all of the fields:

You can then look through all of these items to get the id and value of the field.

Note: the one gap that we have is that you are working with a business object (data), which does not contain the field's label. If the property secureJS=false, then you can get at the label, as it is part of the internal structure, just not currently exposed in the api, using "__boa".

This code will print out all the field labels and values in the table:

var tbl = BO.F_Table1;
for(var i=0;i<tbl.getLength();i++) {
  var row = tbl.get(i);
  var children = row.getChildren();
  debugger;
  for(var j=0;j<children.getLength();j++)
  {
    var itm = children.get(j);
    var inputTypes = ["text","currency","number","date"];
    debugger;
    var title = inputTypes.indexOf(itm.getType()) != -1 ? itm.__boa.label : "";
    var value = inputTypes.indexOf(itm.getType()) != -1 ? itm.getValue() : "";

page.F_HTMLArea1.setContent(page.F_HTMLArea1.getContent() + "&lt;br /&gt;" + title + ": " + value);



}

}

3

@Christopher Dawes

Many thanks Christopher!

Is it possible to access all the fields 'potentially' making up the table?

In this case, there are 5 fields (A, B, C, D, E) however only 3 are assigned (A, B, C).

As you can see, the table widgets are located in a section; is there any way of accessing this section and getting the children from Page 1?

Best regards

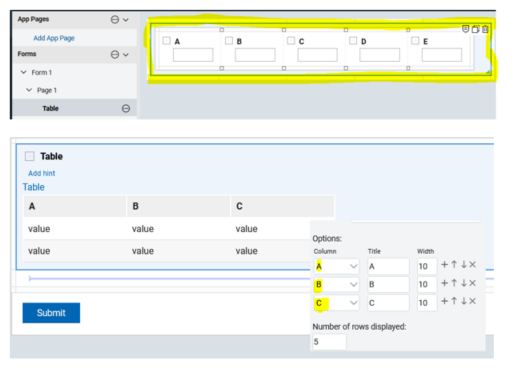

Community-Pasted-Attachment-1722406332222.png516×368 29.9 KB

4

The code I provided will access all of the fields in the table.

5

@Christopher Dawes

Thanks, it is accessing all fields, however the HTML area remains empty with the exception of colon separators.

It was not recognising the single line widget type as a member of the inputTypes array namely 'text'.

I experimented by adding 'string' to the array and it worked namely the HTML output returned correct results.

var inputTypes = ['text','currency','number','date','string'];

It seems I'm getting the widget's value type and the not the widget type; am I possibly missing a parameter on the following variable?

var itm = children.get(j)
6

Hi Stephen,

You might want to check as well the link below if this is applicable to you:

https://hclwiki.atlassian.net/wiki/spaces/HDV/pages/553058412/Interacting+with+Table+from+Main+Form

As described:

"In some case you may want to add, edit and delete items in a table without the “out of the box” table UI. This app will show you how you can control the data in a table from the main form."

Regards,

Jayve

7

@Jayve Javier

Many thanks for this!
I had a look at the inherent JS however I believe it will only count the columns that are included in the table by referring to an appended new row.

Best regards
Stephen

// Get reference to table (business object)
var tbl = BO.F_Table1;
// Create a new row object
var newRow = tbl.createNew();
// Get array of columns
var newCols = newRow.getChildren();

8

You're welcome Stephen.

Please check the design, the included columns in table is only # and Name (2 fields only):

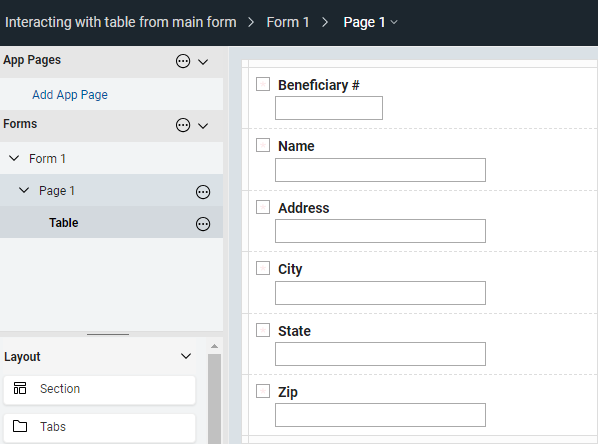

Community-Pasted-Attachment-1722428060407.png288×217 2.88 KB

As per checking the code, newCols is array of columns of all fields in the table. If you check the JS after those lines, it will access the indices and assign a value using setValue (for all fields):

// Set the column values
newCols.get(0).setValue(field1_value); // index value for Beneficiary #
newCols.get(1).setValue(field2_value); // index value for Name
newCols.get(2).setValue(field3_value); // index value for Adddress
newCols.get(3).setValue(field4_value); // index value for City
newCols.get(4).setValue(field5_value); // index value for State
newCols.get(5).setValue(field6_value); // index value for Zip

Community-Pasted-Attachment-1722427593518.png598×444 16.3 KB

Thanks,

Jayve

9

@Jayve Javier

Sorry! You're absolutely right!
Many thanks

10

@Jayve Javier

There is an unfamiliar line of code in this example app namely in the number widget '# in Tables':

if(item.getValue(0)===8)

Do you know what purpose the zero serves or is it legacy code or simply erroneous?

Best regards
Stephen

11

Hello Stephen,

The design of the app is to add up to 8 entries only in the table. That part of code means, if the # in Tables reached number 8, then Add button should be disable.

I believe the purpose is the same with item.getValue(). Try to put alert and test:

if(item.getValue()===8) {
alert(item.getValue())
page.F_Button1.setActive(false);
}

Thank you,

Jayve

12

Thanks Jayve, it works either way; it's just I've never seen the getValue command with a parameter before!
