How to build a webhook that accepts a structured JSON payload?

HCL Volt MX Volt MX Forum
,
1

I want to have a webhook that accepts any JSON payload, extracts some of the attributes from the payload object in a JS preprocessor and hands them over to a workflow that it starts asynchronously. This seems to be harder than I thougth. What's a good way to achieve this?

I tried a lot, but always get Error 500 when sending a payload that does not conform with the defined input parameters, even when inbound passthrough is selected. I can not influence what the sender sends, I have to adapt to it in my JS preprocessor.

What's your suggestions?

2

You can do this in few different ways. Here are 2 options that I would suggest.

Option 1: Use Foundry Workflow Adapter to invoke the Workflow.

Option 2:

  1. Create a simple JavaScript or Java Integration service with required payload and preprocessor.

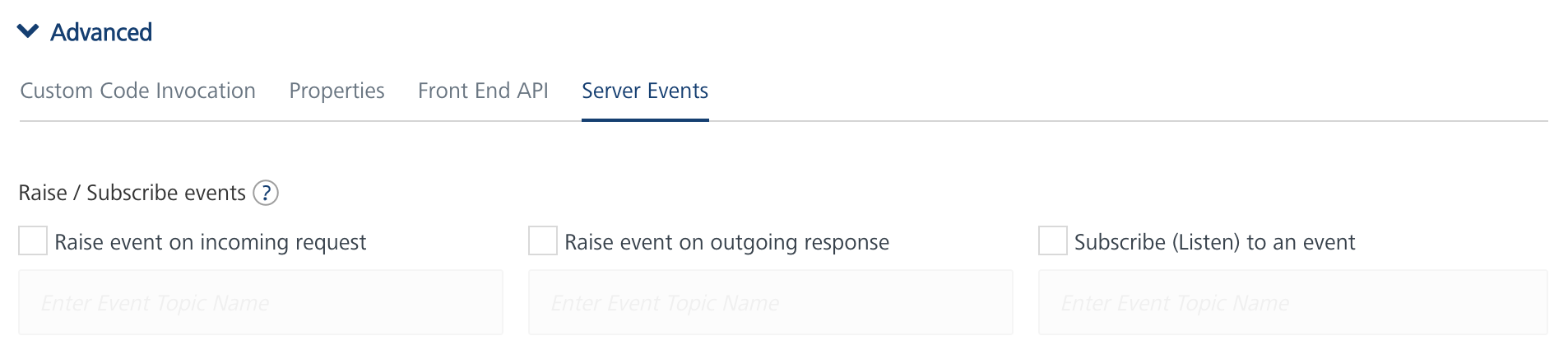

  2. Raise an Event based on the criteria suitable to your requirements, from Server Events tab of the Operation (as shown below).
  3. Use this Event to trigger your workflow.

Community-Pasted-Attachment-1685942786052.png1906×442 29.6 KB

3

The payload I have to accept from an external service contains unusual html-like tags (<at>, </at> for example) which break the whole integration service approach because every payload must pass the “filter”, and the “filter” doesn’t let those tags pass. They are in string values, so I never thought I would end up at this point but I do.

I can not change the payload I get, I have to adopt to it. How can the “filter” be customized to my needs so that to accepts the unusual tags at least with manual customizing?

4

I would also like to know how a pre processor should address the keys and values of the structures json object in the payload.

The documentation of the javascript pre/post processor is so poor that I did not yet even get the core concepts.

So let’s work on that.

Payload: {“text”:”<at>Bernd</at> has written a message”,“conversation”:{“id”:”123456;msg=23456”, “name”:”myChat”}}

Preprocessor:

I need a preprocessor that picks the conversation.id, splits it at the “;”, then takes the [0] index as a new key/value “conversationId”:”123456” and the right part, split at the “=“ as the “messageId”:”23456”. these two should become new key/value pairs of the result json payload.

We should also care for the better documentation of the javascript pre/post processors in general. What is request/response/result/param/inputparam/session and which methods are available and how to use them properly.
