we have built a Domino server and mail flows into the notes mailboxes from external domains. the issue we have is if you send a mail from Inotes or a notes client to an external domain it is never received
in the domino logs we see below any ideas what im missing to get mail flowing from notes to external domains, ive done the obvious and check the domino server has internet and can from a CMD prompt connect to an external domain via type MX
[1150:0002-22D4] 22/03/2023 17:37:29 Completed consistency check on mail\tuser1.nsf
[2020:000D-2198] 22/03/2023 17:37:29 Router: No messages transferred to ITECHCOMPLIANCE.COM (host smtp.ITECHCOMPLIANCE.COM) via SMTP: SMTP Protocol Returned a Transient Error
[2020:0008-0D48] 22/03/2023 17:37:29 Router: Failed to connect to SMTP host ITECHCOMPLIANCE.COM because SMTP Protocol Returned a Transient Error
[2368:0002-2098] 22/03/2023 17:37:29 IMAP Server: Started
[2020:000E-0B9C] 22/03/2023 17:37:29 Router: No messages transferred to INSIGHTFULTECHNOLOGY.COM (host insightfultechnology-com.mail.protection.outlook.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[2020:0007-1394] 22/03/2023 17:37:29 Router: Failed to connect to SMTP host INSIGHTFULTECHNOLOGY.COM because 221 2.0.0 Service closing transmission channel
[1990:0002-1864] 22/03/2023 17:37:30 POP3 Server: Started
[0228:0002-2014] 22/03/2023 17:37:30.72 CSRF Init: iNotes_WA_Security_ReturnUrlCheck> c_CSRFReturnUrlCheck: 1
Can you increase the verbosity of logging to get more detail? Configuration Settings document, Router/SMTP tab, Advanced tab, Controls tab. Logging Level field. Change to Informational or Verbose. Save, close. Replicate with the mail server if needed. Run Tell Router Update Config command on the mail server. Then try to send again to the above domain and see if your log provides more detailed info.
just enabed logging and sent an email from domino to gmail see below email never arrived
[1634:0002-17A0] 22/03/2023 20:42:17 Router: Updating journalling configuration
[1634:000A-2BC0] 22/03/2023 20:42:26 Router: Transfer to server GMIL.COM is ready with 1 messages
[1634:000D-2354] 22/03/2023 20:42:26 Router: Transfer thread [0000000D] searching for work
[1634:000D-2354] 22/03/2023 20:42:29 Router: Transferring mail to domain GMIL.COM (host mail.yaxmail.net [65.109.161.211]) via SMTP
[1634:0007-2A68] 22/03/2023 20:42:29 Router: Message 0071BFBC transferred to mail.yaxmail.net for mariamoranmail@gmil.com from Test user1/soteria-grid OFC07E9597:4695AF44 ON8025897A:0071BFBC Size: 3K via SMTP
[1634:0006-2AE8] 22/03/2023 20:42:29 Router: Debug journal adding message <1:26672> (Note 0:00000B32) to queue. Pending: 1
[1634:000D-2354] 22/03/2023 20:42:29 Router: Transferred 1 messages to GMIL.COM (host mail.yaxmail.net) via SMTP
[1634:000B-0E98] 22/03/2023 20:42:29 Router: Debug journal extern update for message <1:26672> (Note 0:00000B32), wfj:1, Pending: 1
[1634:0005-2AF0] 22/03/2023 20:42:29 Router: Debug journal delete message <1:26672> (Note 0:00000B32), WaitFlag: 1, Pending: 0
[1634:0002-17A0] 22/03/2023 20:43:10 Router: Updating values from Configuration document
[1634:0002-17A0] 22/03/2023 20:43:21 Router: Updating journalling configuration
[22CC:0002-235C] 22/03/2023 20:43:44 Admin Process: Searching Administration Requests database
[1634:0002-17A0] 22/03/2023 20:44:24 Router: Updating journalling configuration
[29BC:0008-2BCC] 22/03/2023 20:44:32 SMTP Server: scanner-26.ch1.censys-scanner.com (167.248.133.124) connected
[29BC:0008-1820] 22/03/2023 20:44:32 TLSCache-SMTP: The Certificate Store database (certstore.nsf) is not available on this server. Consider running the CertMgr task to create this database to enable enhanced TLS certificate management.
[29BC:0008-1820] 22/03/2023 20:44:32 SSL Error: Keyring File access error
[29BC:0008-1820] 22/03/2023 20:44:32 SMTP Server: scanner-26.ch1.censys-scanner.com (167.248.133.124) disconnected. 0 message[s] received
[1634:0002-17A0] 22/03/2023 20:45:28 Router: Updating journalling configuration
[1634:0002-17A0] 22/03/2023 20:46:32 Router: Updating journalling configuration
[1634:0002-17A0] 22/03/2023 20:47:35 Router: Updating journalling configuration
[1634:0002-17A0] 22/03/2023 20:48:13 Router: Updating values from Configuration document
more logs
[22A0:0002-15EC] 22/03/2023 21:11:21 Router: Updating values from Configuration document
>
>
>
>
[22A0:0002-15EC] 22/03/2023 21:11:52 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:12:56 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:14:00 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:15:03 Router: Updating journalling configuration
[12DC:0059-2444] 22/03/2023 21:15:14 Opened session for administrator/soteria-grid (Release 12.0.1)
[22A0:0002-15EC] 22/03/2023 21:16:07 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:16:23 Router: Updating values from Configuration document
[22A0:000C-09E8] 22/03/2023 21:16:29 Router: Transfer to server ITECHCOMPLIANCE.COM is ready with 19 messages
[22A0:000C-09E8] 22/03/2023 21:16:29 Router: Transfer to server INSIGHTFULTECHNOLOGY.COM is ready with 10 messages
[22A0:000E-29E8] 22/03/2023 21:16:29 Router: Transfer thread [0000000E] searching for work
[22A0:000D-2A40] 22/03/2023 21:16:29 Router: Transfer thread [0000000D] searching for work
[22A0:000E-29E8] 22/03/2023 21:16:29 Router: No messages transferred to ITECHCOMPLIANCE.COM (host smtp.ITECHCOMPLIANCE.COM) via SMTP: SMTP Protocol Returned a Transient Error
[22A0:0008-2708] 22/03/2023 21:16:29 Router: Failed to connect to SMTP host ITECHCOMPLIANCE.COM because SMTP Protocol Returned a Transient Error
[22A0:000D-2A40] 22/03/2023 21:16:29 Router: No messages transferred to INSIGHTFULTECHNOLOGY.COM (host insightfultechnology-com.mail.protection.outlook.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:0007-0A10] 22/03/2023 21:16:29 Router: Failed to connect to SMTP host INSIGHTFULTECHNOLOGY.COM because 221 2.0.0 Service closing transmission channel
[22A0:0002-15EC] 22/03/2023 21:17:10 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:18:14 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:19:17 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:20:21 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:21:24 Router: Updating values from Configuration document
[22A0:0002-15EC] 22/03/2023 21:21:24 Router: Updating journalling configuration
Hi Chris.
There are a few things here, most of them not related to Domino itself.
- You mentioned you sent an email to gmail.com, but the log you shared show gmil.com (typo); with this, such email will never arrive to a gmail.com mailbox
- Note that such previous domain did receive your email
- You need to set up a public IP address in order to be able to send email; this can be done either at your Domino box or via a Firewall with a NAT
- The public IP used for sending out emails must have a valid PTR; this needs to be requested to your ISP.
- Ideally, your domain should have a valid SPF record including such public IP Address.
- Ideally, your outgoing mails should be DKIM-signed. (This is already available in Domino 12, so, no third party tool is required for this now)
- Recommended to have a DMARC record.
There are mail servers, security gateways, mail gateways that perform several or all of such validations. If your public IP address won't have a PTR, they can simply ignore or block the connection attempt to receive email, which seems to be the case for your testing domain which is hosted in M365 (which, by default, indeed perform all of the above validations except for DKIM - which may be added by a M365 admin).
I'd put my first and main efforts in those networking and DNS stuff rather than on Domino, unless you confirm that you already have all that addressed on your end.
Regards,
Elvis.
corretc typo
heres log when sending to actual email address no typo you can see error below and mail never delivered
[22A0:0008-2708] 22/03/2023 21:46:46 Router: Failed to connect to SMTP host ITECHCOMPLIANCE.COM because SMTP Protocol Returned a Transient Error
[22A0:000D-2A40] 22/03/2023 21:46:46 Router: No messages transferred to INSIGHTFULTECHNOLOGY.COM (host insightfultechnology-com.mail.protection.outlook.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:0008-2708] 22/03/2023 21:46:46 Router: Failed to connect to SMTP host INSIGHTFULTECHNOLOGY.COM because 221 2.0.0 Service closing transmission channel
[22A0:0002-15EC] 22/03/2023 21:46:50 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:47:54 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:48:58 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:50:02 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:51:05 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:51:26 Router: Updating values from Configuration document
[22A0:0002-15EC] 22/03/2023 21:52:09 Router: Updating journalling configuration
[22A0:0002-15EC] 22/03/2023 21:53:12 Router: Updating journalling configuration
[22A0:000A-1508] 22/03/2023 21:53:59 Router: Transfer to server GMAIL.COM is ready with 1 messages
[22A0:000E-29E8] 22/03/2023 21:53:59 Router: Transfer thread [0000000E] searching for work
[22A0:000E-29E8] 22/03/2023 21:54:00 Router: No messages transferred to GMAIL.COM (host gmail-smtp-in.l.google.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:000E-29E8] 22/03/2023 21:54:00 Router: No messages transferred to GMAIL.COM (host alt1.gmail-smtp-in.l.google.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:000E-29E8] 22/03/2023 21:54:00 Router: No messages transferred to GMAIL.COM (host alt2.gmail-smtp-in.l.google.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:000E-29E8] 22/03/2023 21:54:01 Router: No messages transferred to GMAIL.COM (host alt3.gmail-smtp-in.l.google.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:000E-29E8] 22/03/2023 21:54:03 Router: No messages transferred to GMAIL.COM (host alt4.gmail-smtp-in.l.google.COM) via SMTP: SMTP Protocol Returned a Permanent Error
[22A0:0007-0A10] 22/03/2023 21:54:03 Router: Failed to connect to SMTP host GMAIL.COM because SMTP Protocol Returned a Permanent Error
[22A0:0002-15EC] 22/03/2023 21:54:16 Router: Updating journalling configuration
mx lookup works for all domains ive been sending to
> set type=mx
> itechcompliance.com
Server: UnKnown
Address: 10.28.96.12
Non-authoritative answer:
itechcompliance.com MX preference = 1, mail exchanger = smtp.itechcompliance.com
smtp.itechcompliance.com internet address = 217.151.43.48
> insightfultechnology.com
Server: UnKnown
Address: 10.28.96.12
insightfultechnology.com MX preference = 10, mail exchanger = insightfultechnology-com.mail.protection.outlook.com
insightfultechnology-com.mail.protection.outlook.com internet address = 104.47.20.36
> gmail.com
Server: UnKnown
Address: 10.28.96.12
Non-authoritative answer:
gmail.com MX preference = 30, mail exchanger = alt3.gmail-smtp-in.l.google.com
gmail.com MX preference = 10, mail exchanger = alt1.gmail-smtp-in.l.google.com
gmail.com MX preference = 5, mail exchanger = gmail-smtp-in.l.google.com
gmail.com MX preference = 20, mail exchanger = alt2.gmail-smtp-in.l.google.com
gmail.com MX preference = 40, mail exchanger = alt4.gmail-smtp-in.l.google.com
alt3.gmail-smtp-in.l.google.com internet address = 142.250.150.26
alt3.gmail-smtp-in.l.google.com AAAA IPv6 address = 2a00:1450:4010:c1c::1a
alt1.gmail-smtp-in.l.google.com internet address = 142.250.153.27
alt1.gmail-smtp-in.l.google.com AAAA IPv6 address = 2a00:1450:4013:c16::1a
gmail-smtp-in.l.google.com internet address = 74.125.133.26
gmail-smtp-in.l.google.com AAAA IPv6 address = 2a00:1450:400c:c07::1b
alt2.gmail-smtp-in.l.google.com internet address = 142.251.9.27
alt2.gmail-smtp-in.l.google.com AAAA IPv6 address = 2a00:1450:4025:c03::1b
alt4.gmail-smtp-in.l.google.com internet address = 74.125.200.27
alt4.gmail-smtp-in.l.google.com AAAA IPv6 address = 2404:6800:4003:c00::1a
>
Hi.
Did you check points 3 through 7 ?
Sincerely,
Elvis
Hi Chris,
Some background about the error.
SMTP Protocol Returned a Transient Error:
The error, "SMTP Protocol Returned a Transient Error," indicates the failure to successfully transfer a message from a source SMTP server to a destination SMTP server is considered of temporary duration, such as: DNS, firewall or destination site limitations. Resend attempts will be made for up to a default time interval of 24 hours.
For example:
"<MM/DD/YYYY> 05:37:42 PM Router: No messages transferred to ACME.COM
(host ritz.ACME.COM) via SMTP: SMTP Protocol Returned a Transient Error"
Transient errors are often associated with a 4XX error code, such as:
"421 ritz.ACME.COM SMTP service not available, closing transmission channel"
To understand more on how the SMTP transaction is happening to external domains, enable the below debug on the Domino server.
Set Config SMTPClientDebug=1
Tell Router update config
Tell SMTP update Config
Example of debug traces as below.
[3C8C:000C-5918] 23-03-2023 08:08:30 [3C8C:000C-5918] SMTPClient: Attempting to Connect: Host DOMINO.PNPHCL.COM, Port 25, SSL Port 0, Connecting Domain myserver.hclpnp.com
[3C8C:000C-5918] 23-03-2023 08:08:30 [3C8C:000C-5918] SMTPClient: Connection successful
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 220 DOMINO.PNPHCL.COM ESMTP (b47f5d159c0bc6219dd0c63be3622d2e)
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: CommandEHLO: EHLO myserver.hclpnp.com[3C8C:000C-5918]
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250-DOMINO.PNPHCL.COM Hello myserver.hclpnp.com [10.28.69.10], pleased to meet you
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250-SIZE 100000000
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250-STARTTLS
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250-PIPELINING
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250-8BITMIME
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250 HELP
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: SMTP Authentication is not required by local server. Username: -blank-
[3C8C:000C-5918] 23-03-2023 08:08:31 Router: Transferring mail to domain PNPHCL.COM (host DOMINO.PNPHCL.COM [3.19.21.37]) via SMTP
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: Attempting to SubmitMessage:
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: Pipelined commands:
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: MAIL FROM:<domino.admin@jam.com> SIZE=1872
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: RCPT TO:<sjamma@pnphcl.com>
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: DATA
[3C8C:000C-5918] 23-03-2023 08:08:31 [3C8C:000C-5918] SMTPClient: End of pipelined commands
[3C8C:000C-5918] 23-03-2023 08:08:32 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250 Sender <domino.admin@jam.com> OK
[3C8C:000C-5918] 23-03-2023 08:08:32 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250 Recipient <sjamma@pnphcl.com> OK
[3C8C:000C-5918] 23-03-2023 08:08:32 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 354 Start mail input; end with <CRLF>.<CRLF>
[3C8C:000C-5918] 23-03-2023 08:08:32 [3C8C:000C-5918] SMTPClient: Data Send Succeeded 560 bytes
[3C8C:000C-5918] 23-03-2023 08:08:33 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 250 Ok: queued as 9917B5D0051
[3C8C:000C-5918] 23-03-2023 08:08:33 [3C8C:000C-5918] SMTPClient: Attempting to Disconnect:
[3C8C:000C-5918] 23-03-2023 08:08:33 [3C8C:000C-5918] SMTPClient: CommandQUIT:
[3C8C:0007-4358] 23-03-2023 08:08:33 Router: Message 004A1965 transferred to DOMINO.PNPHCL.COM for sjamma@pnphcl.com from Domino Admin/JAM OFC54578B7:30C53AC7 ON65258979:004A1965 Size: 1K via SMTP
[3C8C:000C-5918] 23-03-2023 08:08:33 [3C8C:000C-5918] SMTPClient: ReceiveResponse: 221 DOMINO.PNPHCL.COM Goodbye myserver.hclpnp.com, closing connection
[3C8C:000C-5918] 23-03-2023 08:08:33 [3C8C:000C-5918] SMTPClient: Connection terminated successfully
[3C8C:000C-5918] 23-03-2023 08:08:33 Router: Transferred 1 messages to PNPHCL.COM (host DOMINO.PNPHCL.COM) via SMTP
Thank you
Regards
Shrikant J
sent email to my personal email wth debug=1
Set Config SMTPClientDebug=1
[10C4:0055-16C4] 23/03/2023 07:51:31 Remote console command issued by administrator/soteria-grid: Set Config SMTPClientDebug=1
Tell Router update config
[10C4:0055-1980] 23/03/2023 07:51:45 Remote console command issued by administrator/soteria-grid: Tell Router update config
[1C88:0002-2554] 23/03/2023 07:51:46 Router: Connection from server 28V107W22/SOTERIA-GRID not used; Server not in local domain.
[1C88:0002-2554] 23/03/2023 07:51:46 Router: Configuration updated and routing tables reloaded
Tell SMTP update Config
[10C4:0055-15B8] 23/03/2023 07:52:00 Remote console command issued by administrator/soteria-grid: Tell SMTP update Config
[283C:0002-2B0C] SMTP Server: Updating values in configuration
[283C:0002-2B0C] SMTP Server: Configuration updated
[1C88:0002-2554] 23/03/2023 07:52:21 Router: Updating journalling configuration
[1C88:000A-2B5C] 23/03/2023 07:52:28 Router: Transfer to server TECHDEMONS.CO.UK is ready with 1 messages
[1C88:0010-2D14] 23/03/2023 07:52:28 Router: Transfer thread [00000010] searching for work
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Attempting to Connect: Host techdemons-co-uk.mail.protection.outlook.com, Port 25, SSL Port 0, Connecting Domain 28v107w22/soteria-grid.boogledomino.com
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Connection successful
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 220 VE1EUR01FT078.mail.protection.outlook.com Microsoft ESMTP MAIL Service ready at Thu, 23 Mar 2023 07:52:28 +0000
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: CommandEHLO: EHLO 28v107w22/soteria-grid.boogledomino.com
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 501 5.5.4 Invalid domain name [VE1EUR01FT078.eop-EUR01.prod.protection.outlook.com 2023-03-23T07:52:28.570Z 08DB2A074DF6D579]
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: CommandHELO: HELO 28v107w22/soteria-grid.boogledomino.com
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 501 5.5.4 Invalid domain name [VE1EUR01FT078.eop-EUR01.prod.protection.outlook.com 2023-03-23T07:52:28.599Z 08DB2A074DF6D579]
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Attempting to Disconnect:
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: CommandQUIT:
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 221 2.0.0 Service closing transmission channel
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Connection terminated successfully
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Attempting to Connect: Host techdemons-co-uk.mail.protection.outlook.com, Port 25, SSL Port 0, Connecting Domain 28v107w22/soteria-grid.boogledomino.com
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Connection successful
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 220 VE1EUR01FT082.mail.protection.outlook.com Microsoft ESMTP MAIL Service ready at Thu, 23 Mar 2023 07:52:28 +0000
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: CommandHELO: HELO 28v107w22/soteria-grid.boogledomino.com
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 501 5.5.4 Invalid domain name [VE1EUR01FT082.eop-EUR01.prod.protection.outlook.com 2023-03-23T07:52:28.696Z 08DB2A0C842E2F3D]
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Attempting to Disconnect:
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: CommandQUIT:
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 221 2.0.0 Service closing transmission channel
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Connection terminated successfully
[1C88:0010-2D14] 23/03/2023 07:52:28 Router: No messages transferred to TECHDEMONS.CO.UK (host techdemons-co-uk.mail.protection.outlook.com) via SMTP: SMTP Protocol Returned a Permanent Error
[1C88:0007-015C] 23/03/2023 07:52:28 Router: Failed to connect to SMTP host TECHDEMONS.CO.UK because 221 2.0.0 Service closing transmission channel
It is something the recipient domain is not accepting the email from your domain it shows in the traces.. Where Domino has received a response saying "501 5.5.4 Invalid domain name"
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 501 5.5.4 Invalid domain name [VE1EUR01FT078.eop-EUR01.prod.protection.outlook.com 2023-03-23T07:52:28.599Z 08DB2A074DF6D579]
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: ReceiveResponse: 501 5.5.4 Invalid domain name [VE1EUR01FT082.eop-EUR01.prod.protection.outlook.com 2023-03-23T07:52:28.696Z 08DB2A0C842E2F3D]
[1C88:0010-2D14] 23/03/2023 07:52:28 [1C88:0010-2D14] SMTPClient: Attempting to Disconnect:

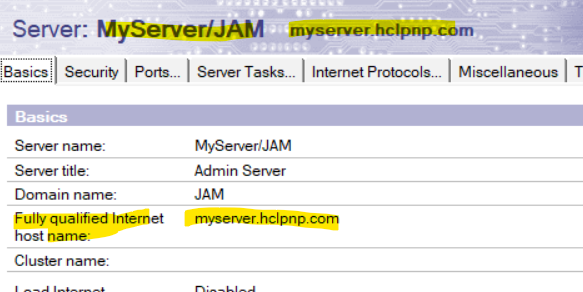

Can you check if your Domino server FQDN in the server document has valid entry for your domain example as below.
I see in the logs as "28v107w22/soteria-grid.boogledomino.com" which I believe is incorrect. You can change this to soteria-grid.boogledomino.com
After making the changes you can restart the Domino server and then try sending an email.
Thank you
Regards
Shrikant J
Domino server FQDN name can be changed to this as well "28v107w22.boogledomino.com"
As I can understand the Domino server name may be this 28v107w22/soteria-grid
Thank you
Regards
Shrikant J
Hi Chris,
Thanks for the update and good to know with the suggested changes emails are flowing now!!
Mark this question as answered and helpful, So that you can also help other community members who are facing the same issue or have the same doubt.
Thank you
Regards
Shrikant J
